Model No: LS-68
Aluminum underground solar highway reflective marker
Quantity :
Highway reflective markers are self-contained and autonomous, operating independently without the need for complex electrical connections, as there is no need for extensive wiring or underground cables, visit saferoute-solution.com to learn more.
Name: Aluminum underground solar highway reflective marker
Mdoel: LS-68
Weight: 1160g±3g
Solar panel: 0.8W 5.5V
Material: Paint coating aluminum die casting, polycarbonate
LED Qty: Single side-1/2/3/5 pcs, double side-2/4/6/10 pcs
Bearable weight: 50t
Working mode: Flashing, GPS synchronous flashing, steady lighting
Work temperature：-40℃ ~70℃
After fully charged, it can be used for about 7 days in rainy days.
It is recommended to use a 150mm drill bit.

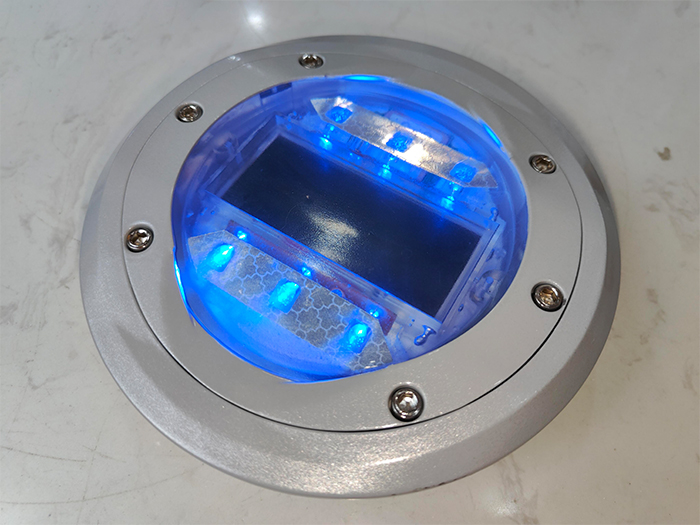

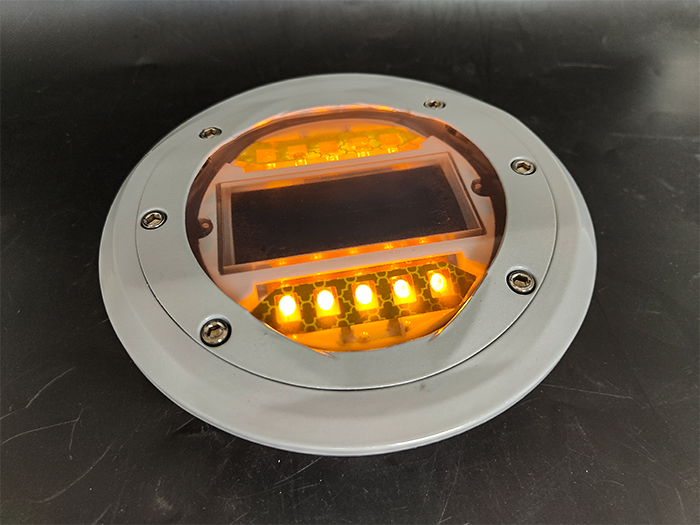

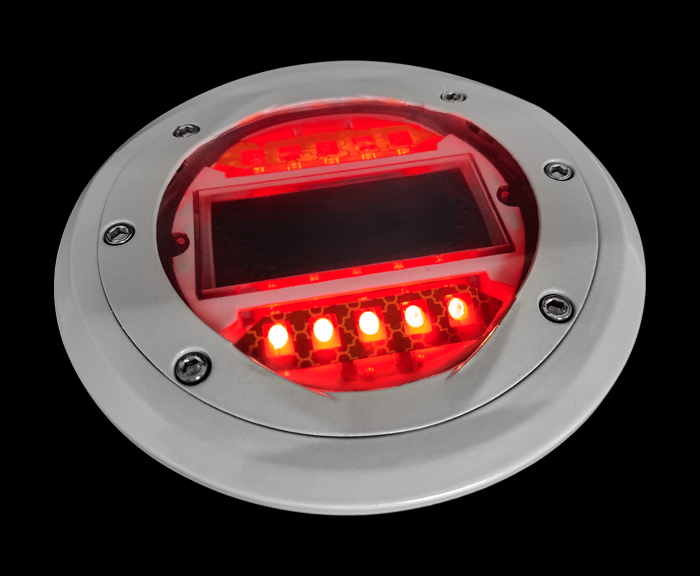

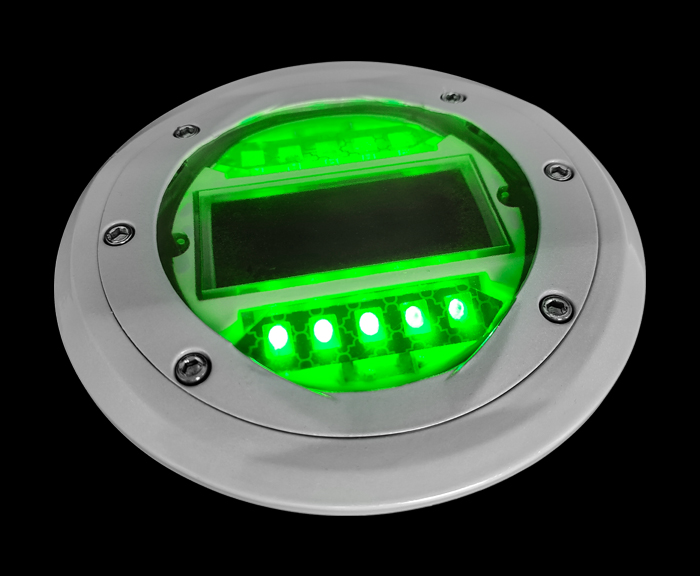

SELECTIVE COLOR

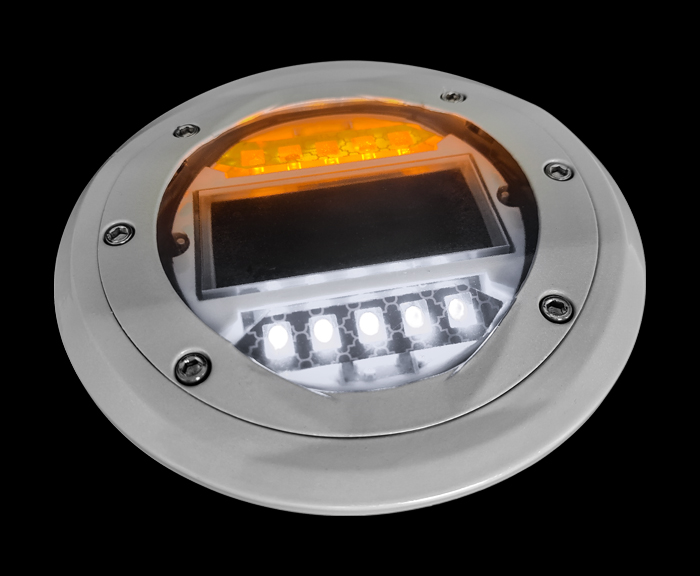

According to actual needs, different colors on both sides can also be customized.

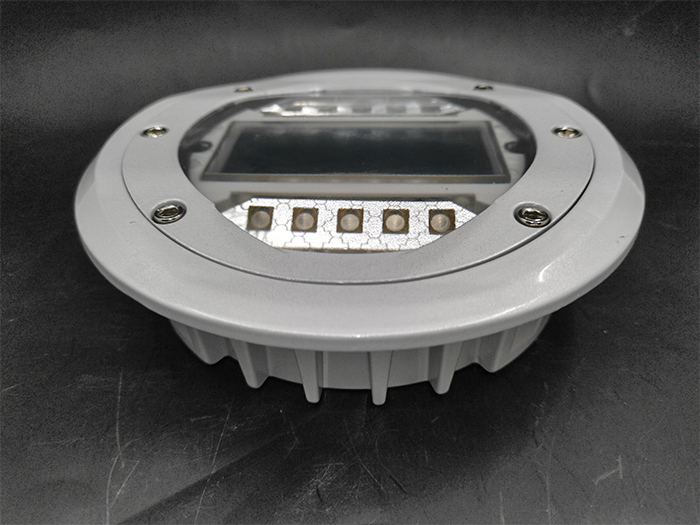

EMBEDDED UNDERGROUND DESIGN
After the installation is completed, the height from the ground is only about 5mm, so the road marker
will not be damaged by the snow shovel during snowy weather.
PAINT COATING ALUMINUM DIE CASTING
Salt Fog Corrosion Resistance, can be used in coastal cities.

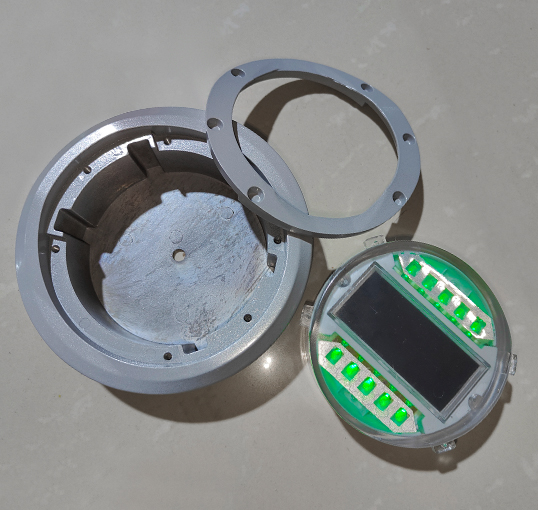

REPLACEABLE INTERIOR DESIGN
Design that can replace internal parts, Can replace specific parts rather than buying an entirely new
product saving money over time.

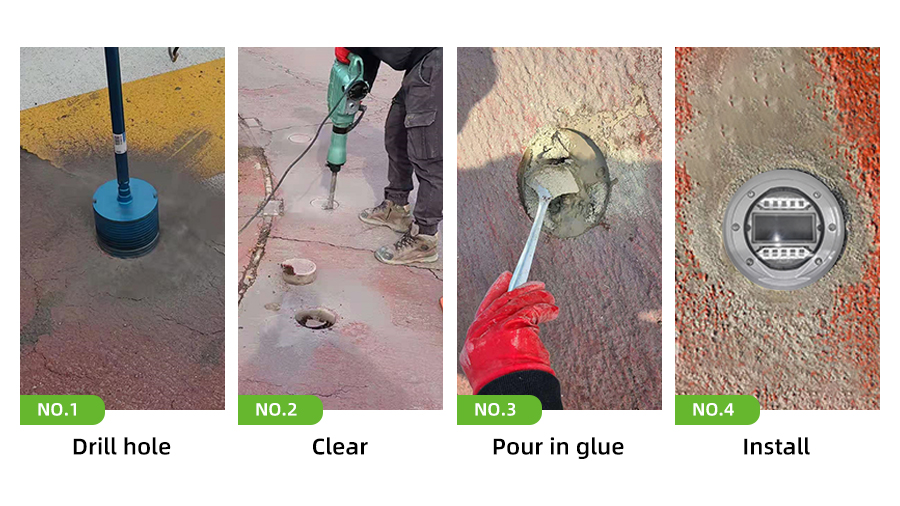

INSTALLATION INSTRUCTIONS
Wear correct personal protection equipment and lay the work zone safety equipment properly.
1. Confirm the installation position, make sure the road surface is flat, and then clean the road surface and
make sure the road surface is dry.
2. It is recommended to use a 150mm drill bit, after drilling the hole, emove all debris in the hole and make sure
the bottom is flat.
3. Wait til the hole is dry, spread some epoxy glue all over the hole and insert the marker.
4. Ensure that the LED is facing the direction of traffic, press themarker inside the holes to firmly install it, and
fix the outer aluminum shell on the road surface.
5. Check all marker to ensure they are installed in the correct position, direction, and level on the road surface and
after confirming that there is no error and the epoxy resin has dried thoroughly, clean your own equipment.

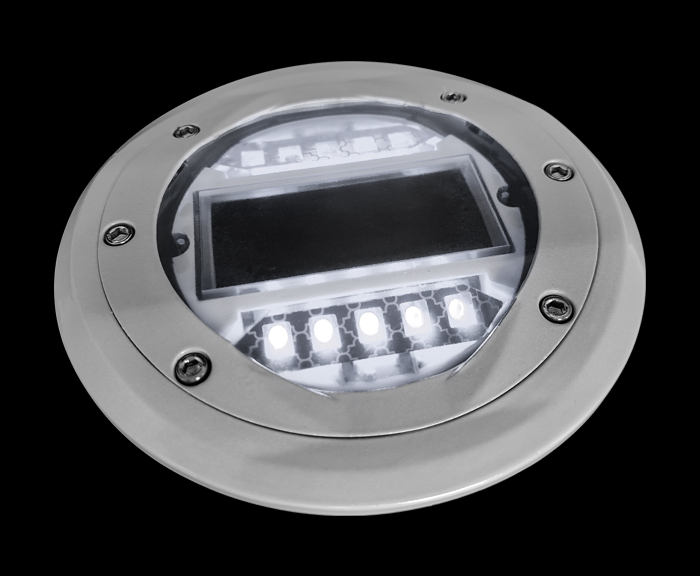

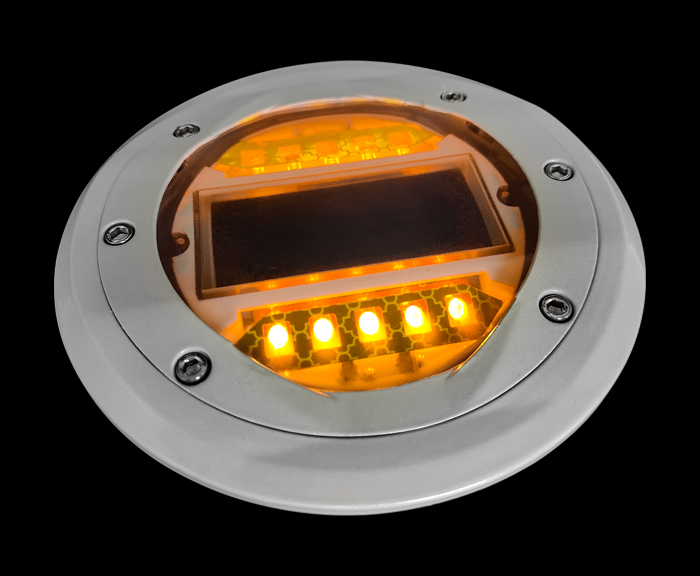

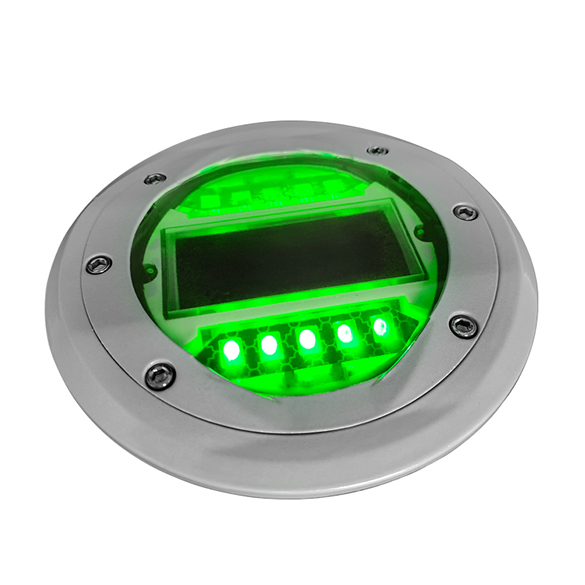

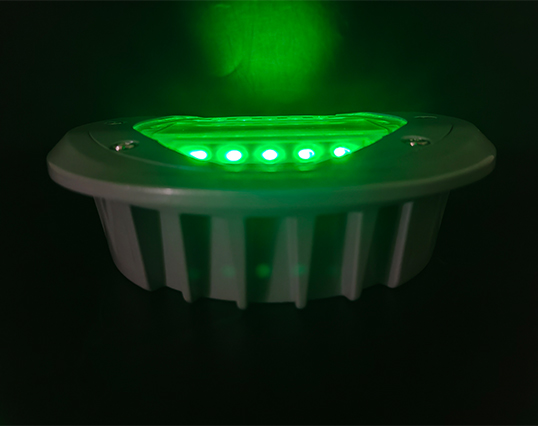

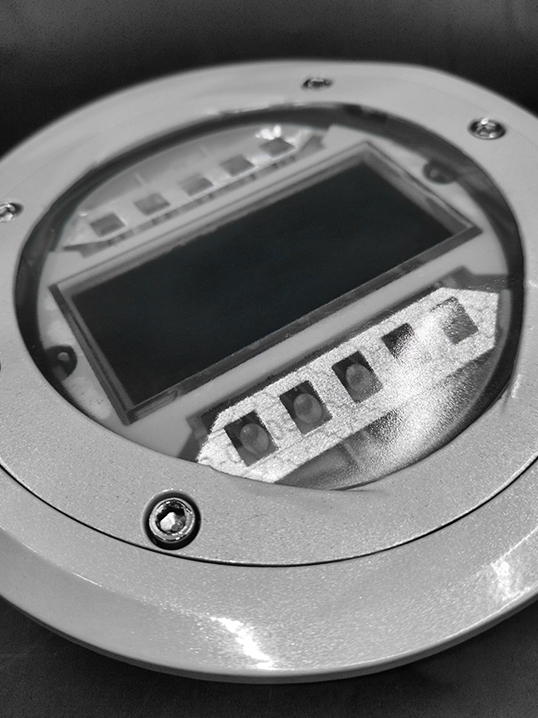

PRODUCT PHOTOGRAPH
