Model No: LS-38
IP68 Salt resistant aluminum underground solar road marker
Quantity :

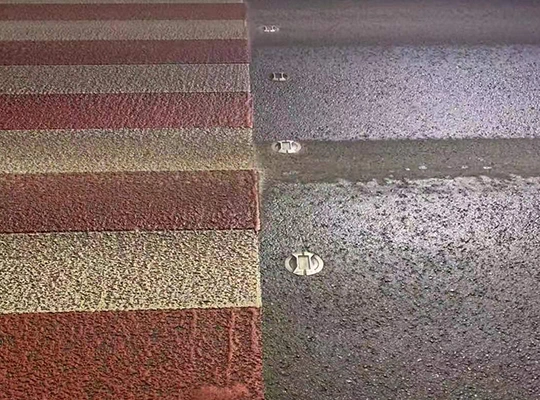

Road marker is a device placed on a road to provide guidance and visibility to drivers. Examples include reflective road studs, delineators, sign...help promote safety and reducing accidents, for more information, please visit saferoute-solution.com

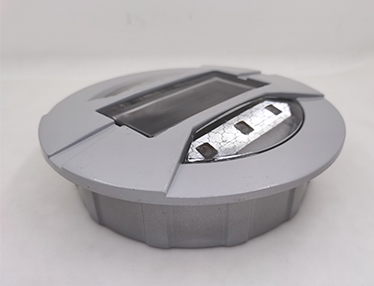

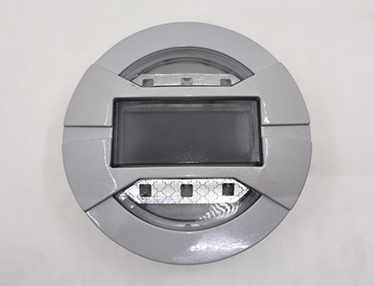

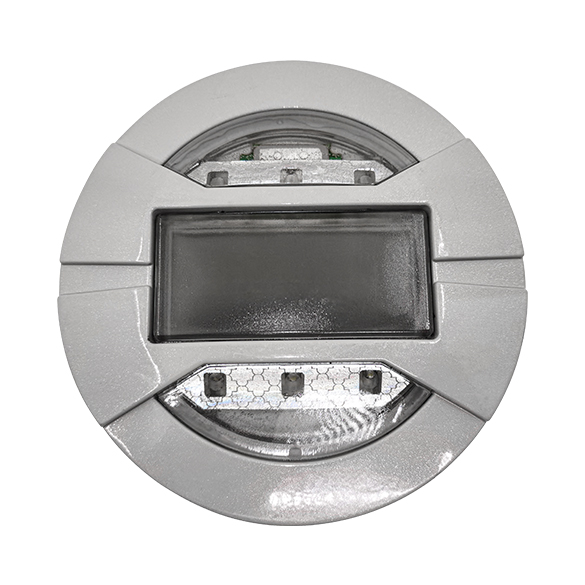

Name: IP68 Salt resistant aluminum underground solar road marker
Mdoel: LS-38
This is our improved new LS-38 (Salt resistant style), so it can be application
in the sea beach city.
Color：Red, yellow, blue, green, white
Size：Diameter 150*44mm (11.5+32.5)
Weight：800g±30g
Material：Aluminium+PC
LED size：5mm LED
LED Qty：Single side 1~5pcs, double side 2~10pcs
Working Mode：Steady, flashing, synchronous flashing
Luminous intensity：5000mcd
Solar panel：5.5v 0.8w
Battery：3.2V 1500mAh
Battery Life Span：≥3 years
Full charge time：8 hours @100k lux (sunny day)
Working time：Over 120 hours after full charge
Working temperature：-20℃~80℃
Warranty：2 years

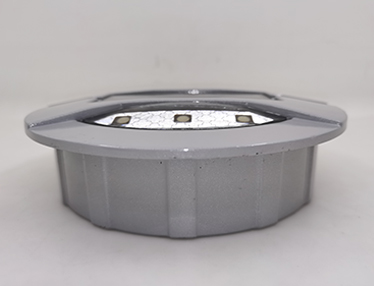

Embedded underreound design

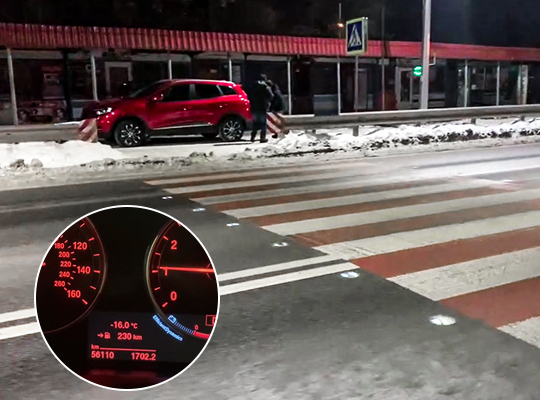

After installation is completed, with a height of 11.5mm, the height of the protruding ground is small, and it
will not be damaged by the snow shovel during snowy days.
HIGH DURABILITY
Capable of withstanding extreme weather conditions, customizable heat and cold resistant
styles, lowest temperature -20℃~highest temperature 50℃.

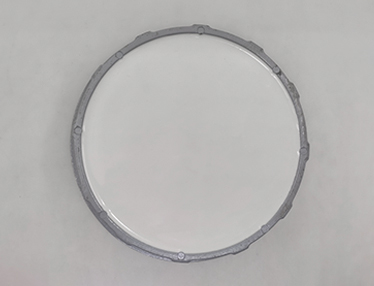

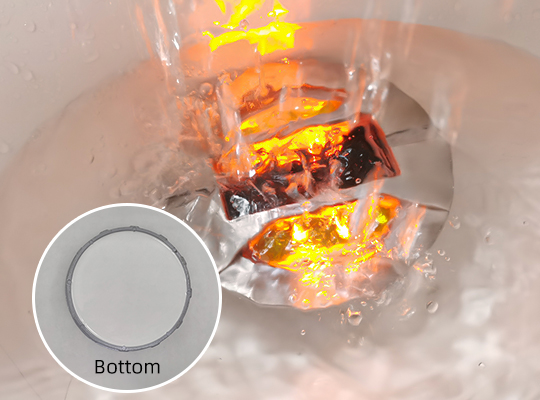

BILAYER PROTECTION
Inner-High strength polycarbonate and outer-aluminum die-casting, double layer structure, internal filling of epoxy
resin, better waterproof and pressure resistant effect.

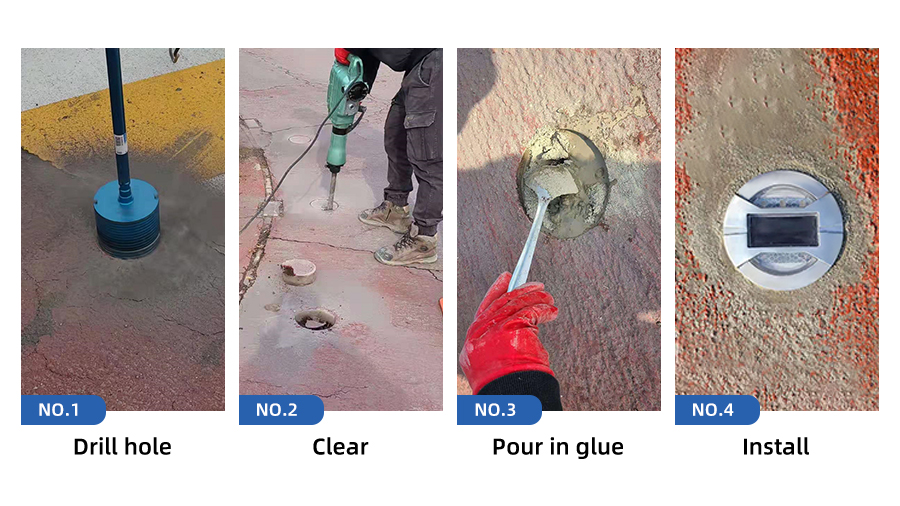

INSTALLATION INSTRUCTIONS
Wear correct personal protection equipment and lay the work zone safety equipment properly.
1. Confirm the installation position, make sure the road surface is flat, and then clean the road surface and make sure the road surface is dry.
2. Drill a hole with a diameter 132mm depth 50mm with the core drill, emove all debris in the hole and make sure the bottom is flat.
3. Wait til the hole is dry, spread some epoxy glue all over the hole and insert the road marker.
4. Ensure that the LED is facing the direction of traffic, press themarker inside the holes to firmly install it, and fix the outer aluminum shell on the road surface.
5. Check all marker to ensure they are installed in the correct position, direction, and level on the road surface and after confirming that there is no error and
the epoxy resin has dried thoroughly, clean your own equipment.
