Model No: LS-08
Reflective PC material solar stud
Quantity :
Solar stud can be used on roads, highways, parking lots, and other outdoor areas to promote safety and improve visibility in low light conditions. If you would like to learn more about solar stud, please visit saferoute-solution.com
Name: Reflective PC material solar stud
Model: LS-08
Color: Red, yellow, green, blue, white, customizable with different colors on both sides
Material: Polycarbonate
Solar panel: 0.8W 5V~6V
Battery: lithium battery 3.2V/3.7V 400~1500mAh
LED Qty: Singel side-1pcs, 2pcs, 3pcs, 5pcs, double side-2pcs, 4pcs, 6pcs, 10pcs
Working temperature: -40℃~85℃
Affordable weight: 30t
Waterproof: IP68

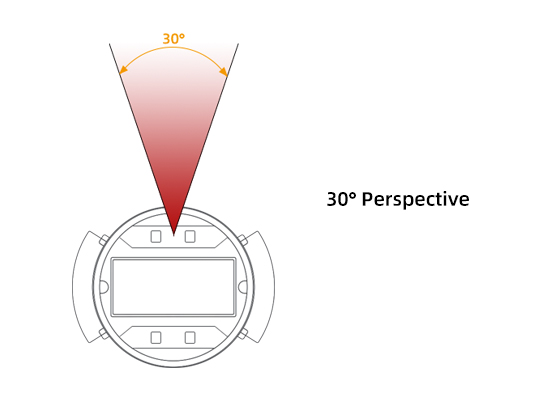

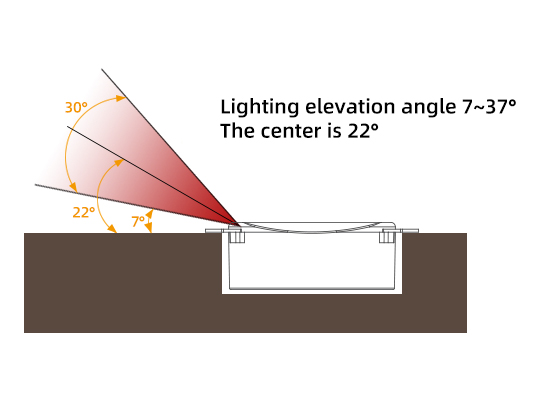

LIGHTING ANGLE

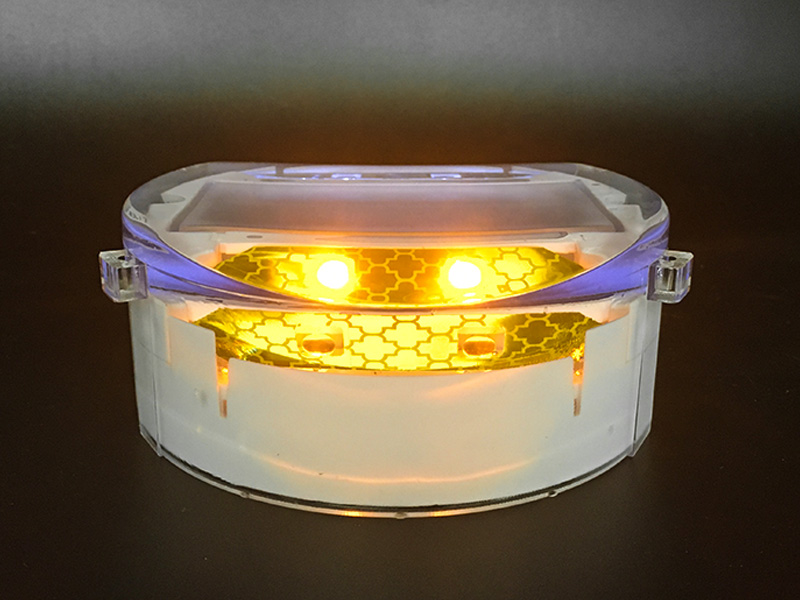

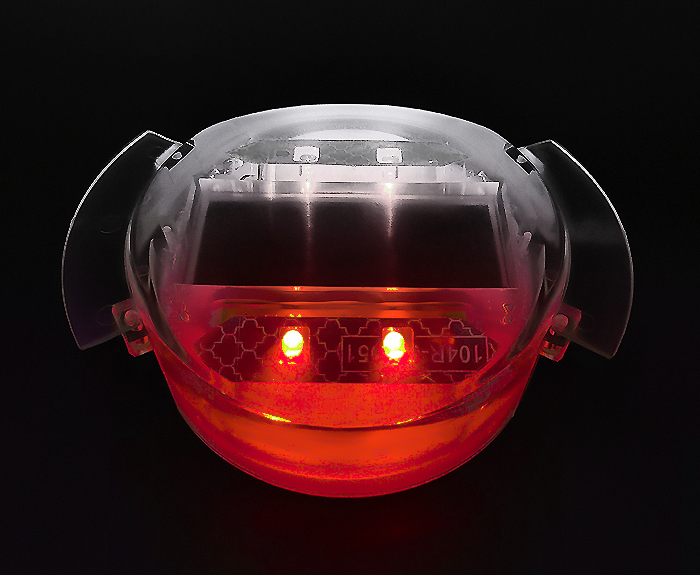

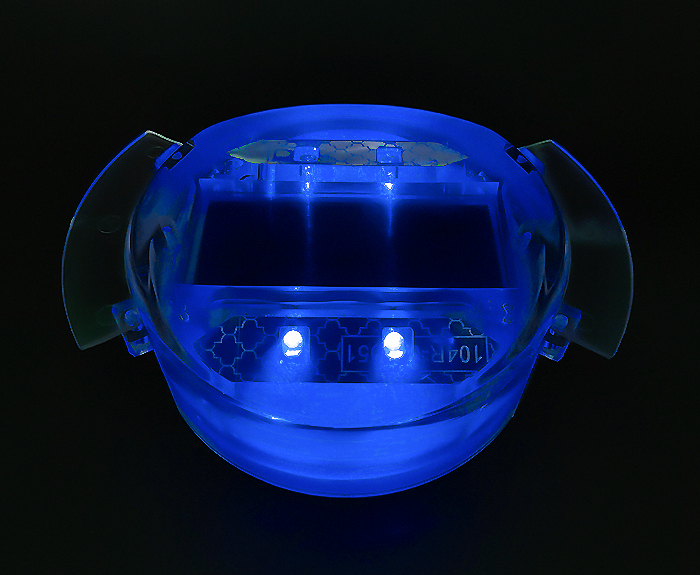

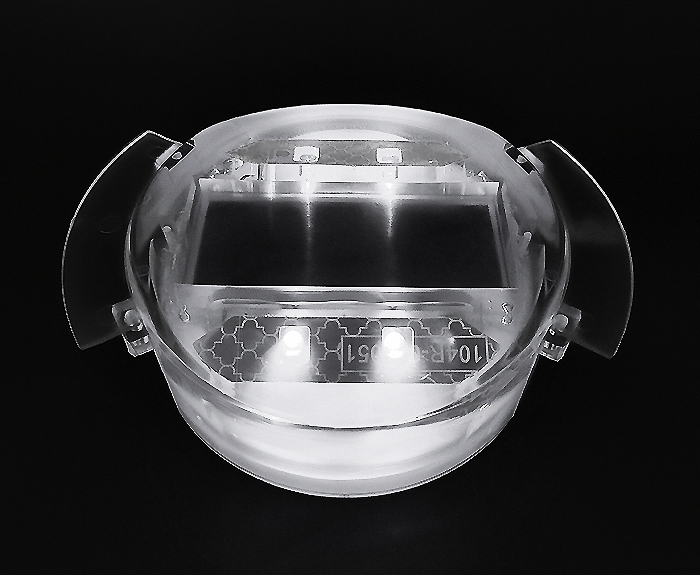

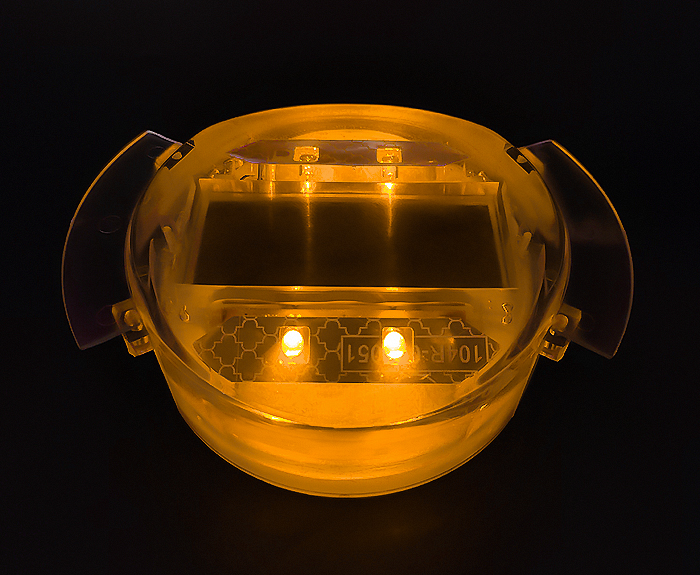

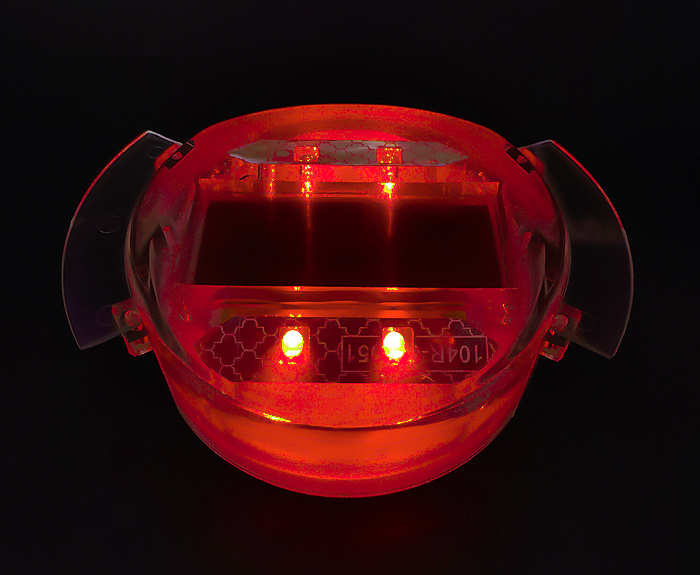

SELECTIVE COLOR

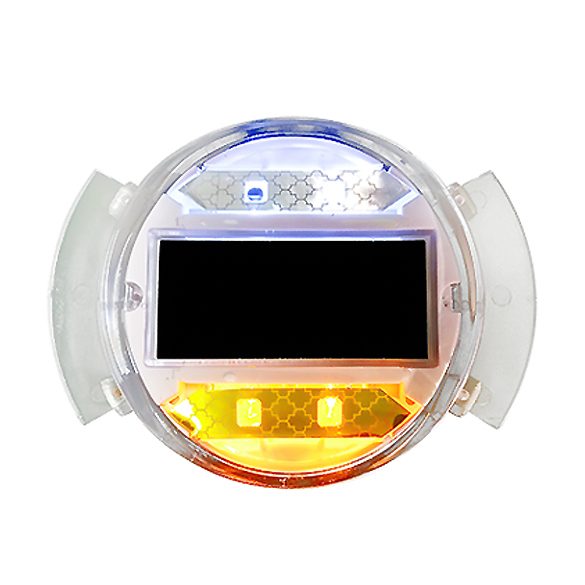

According to actual needs, different colors on both sides can also be customized.

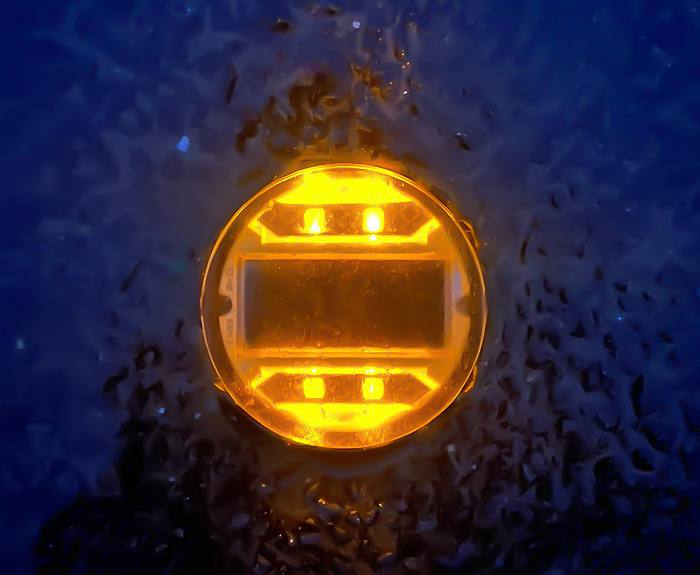

EXCELLENT VISIBILITY
Lighting angle meets relevant standards, visible distance at night exceeds 500m.

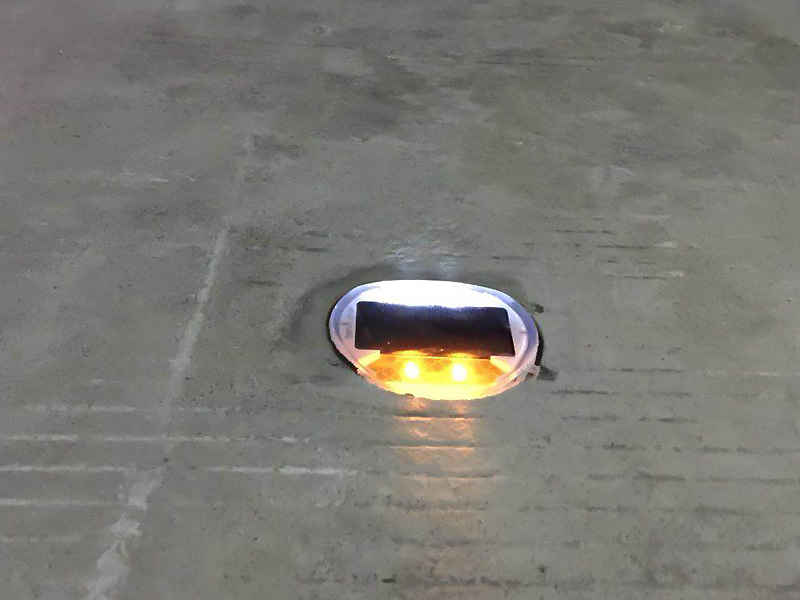

REDUCE DAMAGE

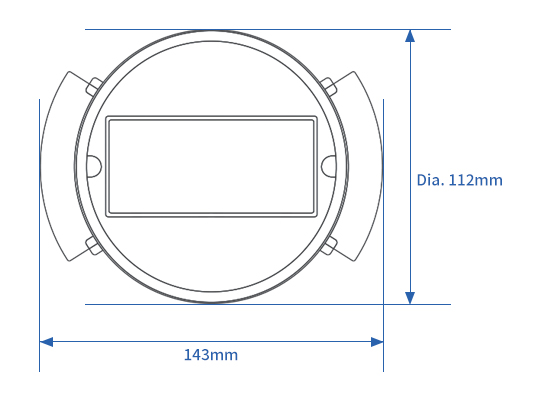

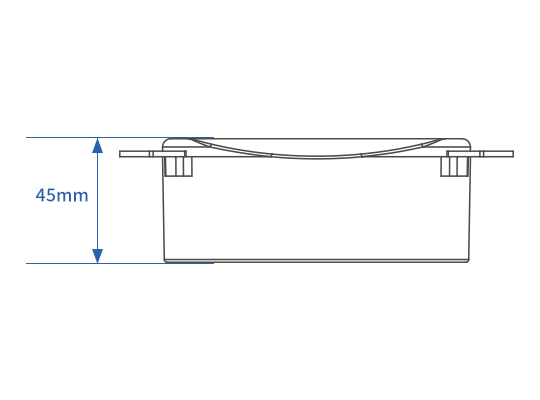

Design embedded in the ground to reduce the protrusion of solar studs. The height protruding from the ground is about 6.5mm, which will
not damage vehicles. Additionally, in snowy weather, it will not be cleared away by snow shovels, preventing potential road damage.

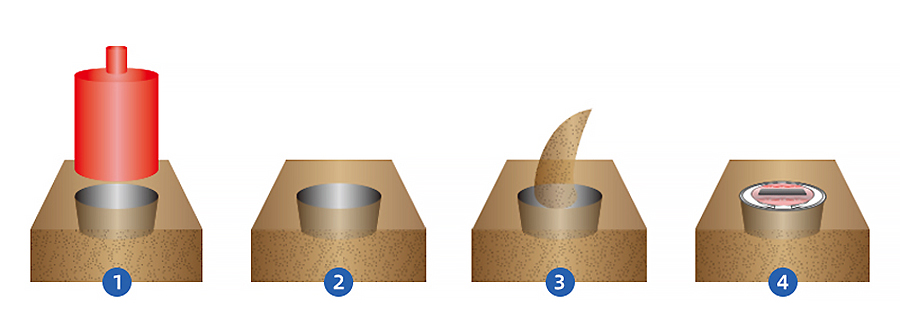

INSTALLATION STEPS
STEP 1, Clean and clean installation location, drill a hole with a core drill. STEP 2, After drilling the hole, clean the sand, stones, or debris inside the hole.
STEP 3, Put in dry sand or cement after paving, inject road stud glue or epoxy resin.
STEP 4, Ensure that the LED is pointing in the correct direction, place the solar stud in the hole, once the glue has dried, installation can be completed.

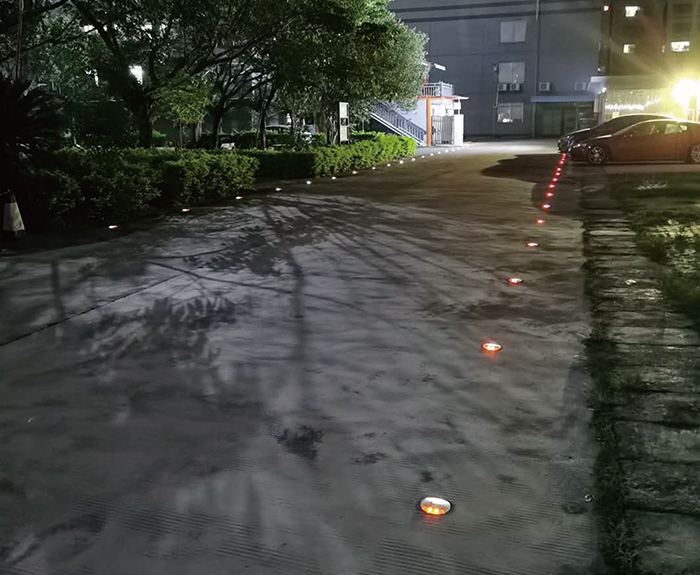

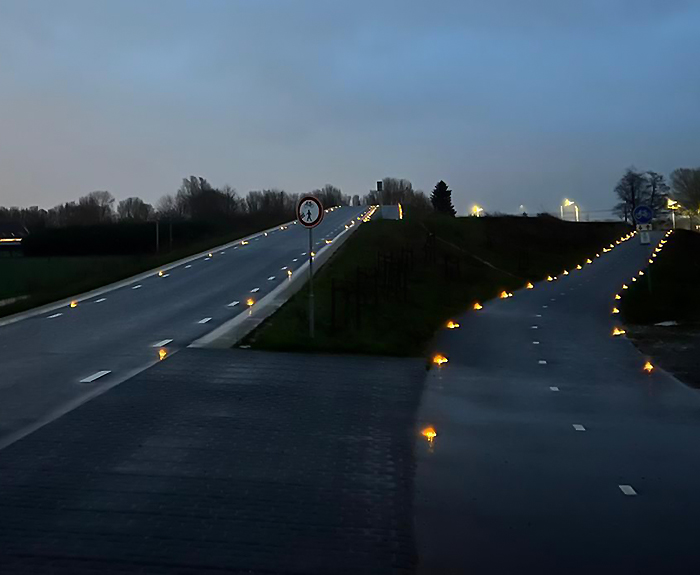

APPLICATION CASE
